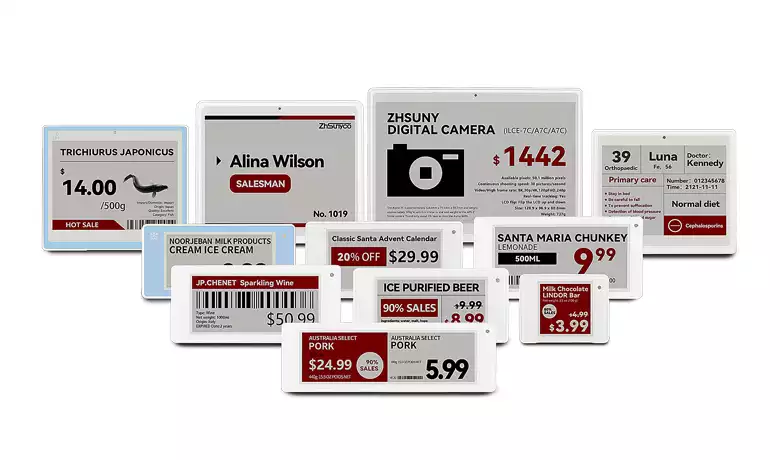

NFC ESLs
Our ESLs enable your customers to receive accurate, timely, and up-to-date price indication through fast, secure transmission while saving energy and costs in the long run.
01
Working Principles

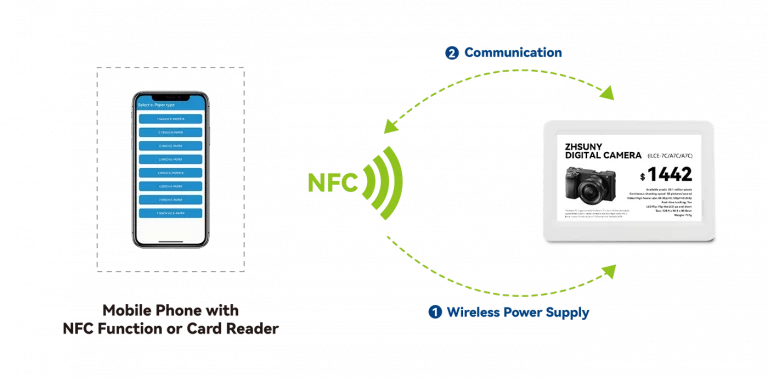

How NFC ESL Solution Works
Our advanced NFC solution involves inserting an NFC reader on a mobile device, which can be pointed at the label to control the display. Customers can edit the image from the app, which can be easy and quickly reflected on the electronic label. The NFC function also ensures a wireless power supply that is transmitted to the label, maintaining the connection and display for long periods without needing to constantly recharge batteries.
How Zhsunyco® Support You in ESL NFC Type?
With 12 years of R&D experience, we specialize in providing expert ESL solutions. Our 20,000 m² factory houses 10 production lines and meets 2.5 million pcs/year demand, ensuring top-quality NFC digital label solutions.
02
Electric Shelf Lables
Technical Specification

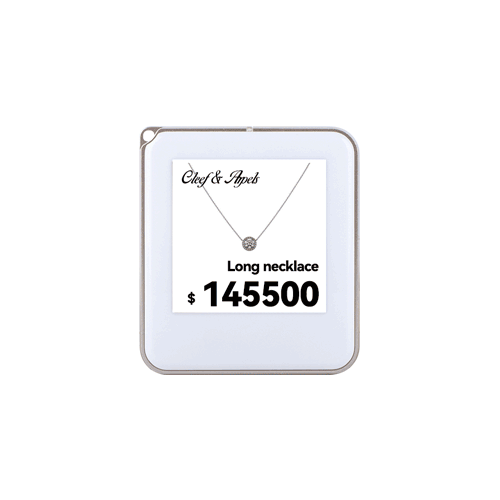

| Category | Parameter | Specification |
| Shell | Dimensions(W*H*D) | 46.0*41.3*6.3(mm) |
| Colors | White/Customized | |
| Display | Active Area(H*V) | 27*27(mm) |
| Resolution(H*V) | 200*200 | |
| Pixel Colors | BWR | |
| Technology | Dot-matrix E-ink Epaper Display | |
| Viewable Angle | Close to 180° | |
| Communication Info. | Frequency | NFC |
| Encryption | Optional | |
| Distance | <1cm | |
| Operating Ambient | Temperature | 0℃~40℃ |
| Humidity | 45%~70%RH | |
| Other Info. | Power Supply | Wireless Power |
| Response Time | 8S(Configurable) | |
| SDK | Available |
| Category | Parameter | Specification |
| Shell | Dimensions(W*H*D) | 65.4*40.1*12.7(mm) |
| Colors | White/Customized | |
| Display | Active Area(H*V) | 49.70*21.8(mm) |
| Resolution(H*V) | 250*122 | |
| Pixel Colors | BW/BWR | |
| Technology | Dot-matrix E-ink Epaper Display | |
| Viewable Angle | Close to 180° | |
| Communication Info. | Frequency | NFC |
| Encryption | Optional | |
| Distance | <1cm | |
| Operating Ambient | Temperature | 0℃~40℃ |
| Humidity | 45%~70%RH | |
| Other Info. | Power Supply | Wireless Power |
| Response Time | 2S(Configurable) | |
| SDK | Available | |

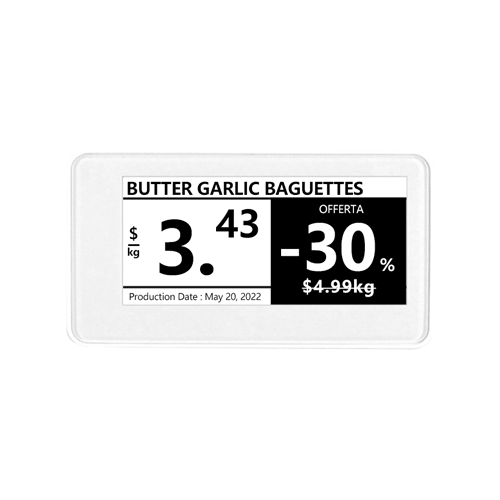

| Category | Parameter | Specification |
| Shell | Dimensions(W*H*D) | 88*42*13(mm) |
| Colors | White/Customized | |
| Display | Active Area(H*V) | 66.9*29.1(mm) |
| Resolution(H*V) | 296*128 | |
| Pixel Colors | BW/BWR | |
| Technology | Dot-matrix E-ink Epaper Display | |
| Viewable Angle | Close to 180° | |
| Communication Info. | Frequency | NFC |
| Encryption | Optional | |
| Distance | <1cm | |
| Operating Ambient | Temperature | 0℃~40℃ |
| Humidity | 45%~70%RH | |
| Other Info. | Power Supply | Wireless Power |
| Response Time | 2S(Configurable) | |
| SDK | Available | |

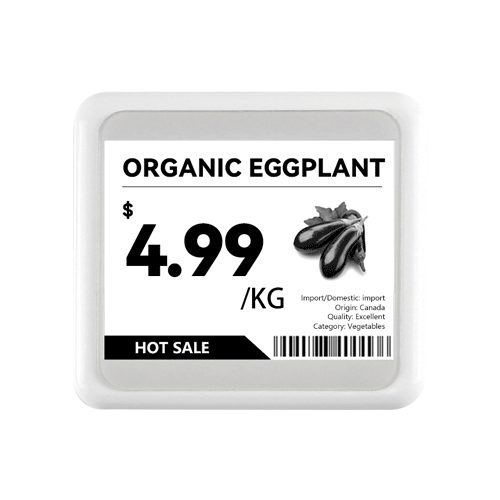

| Category | Parameter | Specification |
| Shell | Dimensions(W*H*D) | 105.1*94.1*9.9(mm) |
| Colors | White/Customized | |
| Display | Active Area(H*V) | 84.8*63.6(mm) |
| Resolution(H*V) | 400*300 | |
| Pixel Colors | BW/BWR | |
| Technology | Dot-matrix E-ink Epaper Display | |
| Viewable Angle | Close to 180° | |
| Communication Info. | Frequency | NFC |
| Encryption | Optional | |
| Distance | <1cm | |
| Operating Ambient | Temperature | 0℃~40℃ |
| Humidity | 45%~70%RH | |
| Other Info. | Power Supply | Wireless Power |
| Response Time | 4S(Configurable) | |
| SDK | Available | |

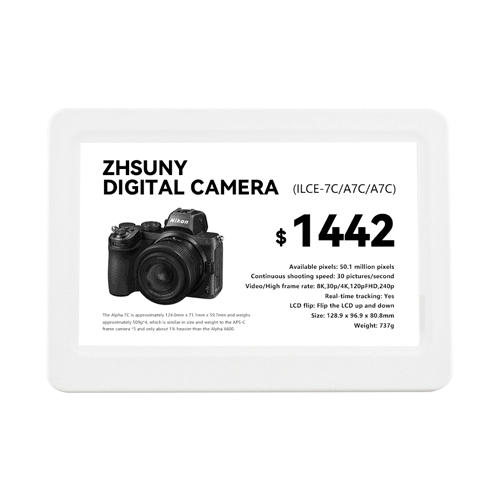

| Category | Parameter | Specification |
| Shell | Dimensions(W*H*D) | 195.8*137.7*13.0(mm) |
| Colors | White/Customized | |
| Display | Active Area(H*V) | 163.2*97.9(mm) |
| Resolution(H*V) | 800*480 | |
| Pixel Colors | BW | |
| Technology | Dot-matrix E-ink Epaper Display | |
| Viewable Angle | Close to 180° | |
| Communication Info. | Frequency | NFC |
| Encryption | Optional | |
| Distance | <1cm | |
| Operating Ambient | Temperature | 0℃~40℃ |
| Humidity | 45%~70%RH | |
| Other Info. | Power Supply | Wireless Power |
| Response Time | 5S(Configurable) | |
| SDK | Available | |
| Other Info. | Power Supply | Wireless Power |
| Response Time | 2S(Configurable) | |
| SDK | Available |
04
Tailored NFC ESL Customization Expertise
As a top-tier digital price tags suppliers, we specialize in exceptional customization services to perfectly suit your unique business demands.
Powerful Customization Capabilities
With a team of 20 expert engineers, 142 utility model patents, and 11 invention patents, we stand among the few truly innovative electronic shelf label manufacturers, delivering cutting-edge solutions for your business.
Multiple Custom Digital Labels Options
As a professional NFC electronic shelf label company, we offer extensive customization choices, allowing you to personalize size, appearance, and logos to perfectly fit your business and branding needs.
Strict Quality Checks Ensure Excellence
Our rigorous 11-step testing ensures impeccable product quality, achieving a 99.99% yield rate. This excellence highlights our commitment as a digital label company that relentlessly pursues top-tier quality standards.
Download the PDF to see more details
05
Main Applications of Our NFC Wholesale Electronic Shelf Label
NFC ESLs are innovative digital shelf labels allowing customer interaction through NFC-enabled smartphones. While offering personalized, interactive experiences, their adoption remains limited due to higher costs and consumer unfamiliarity. Currently, they’re more suited for niche markets like high-end retail and exhibitions rather than widespread retail use. In these markets, NFC ESLs can enhance customer experience by providing personalized product details, exclusive promotions, and interactive content directly through their smartphones, elevating brand engagement.
Boutique Retail Stores
Luxury Stores
Office
Exhibition
Handicraft Stores
Electronics Stores

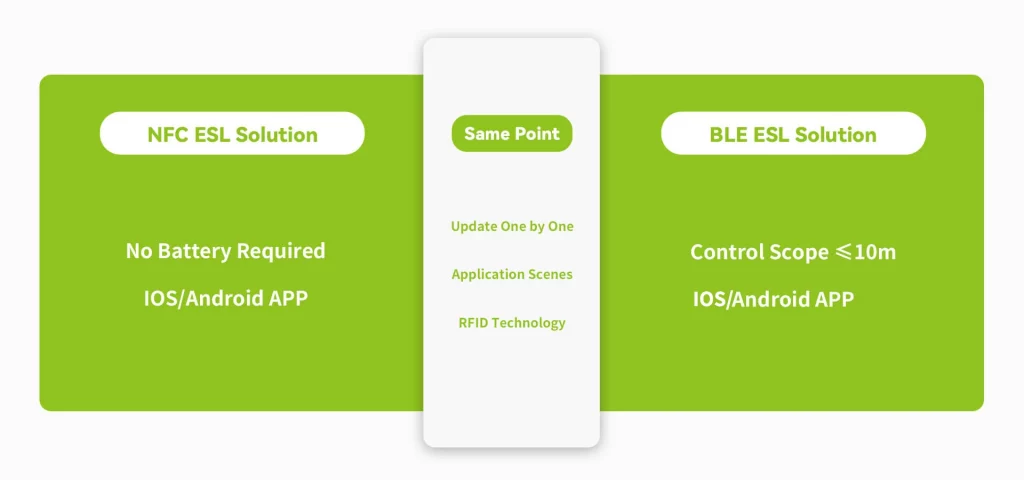

Comparison between NFC ESL & BLE ESL
